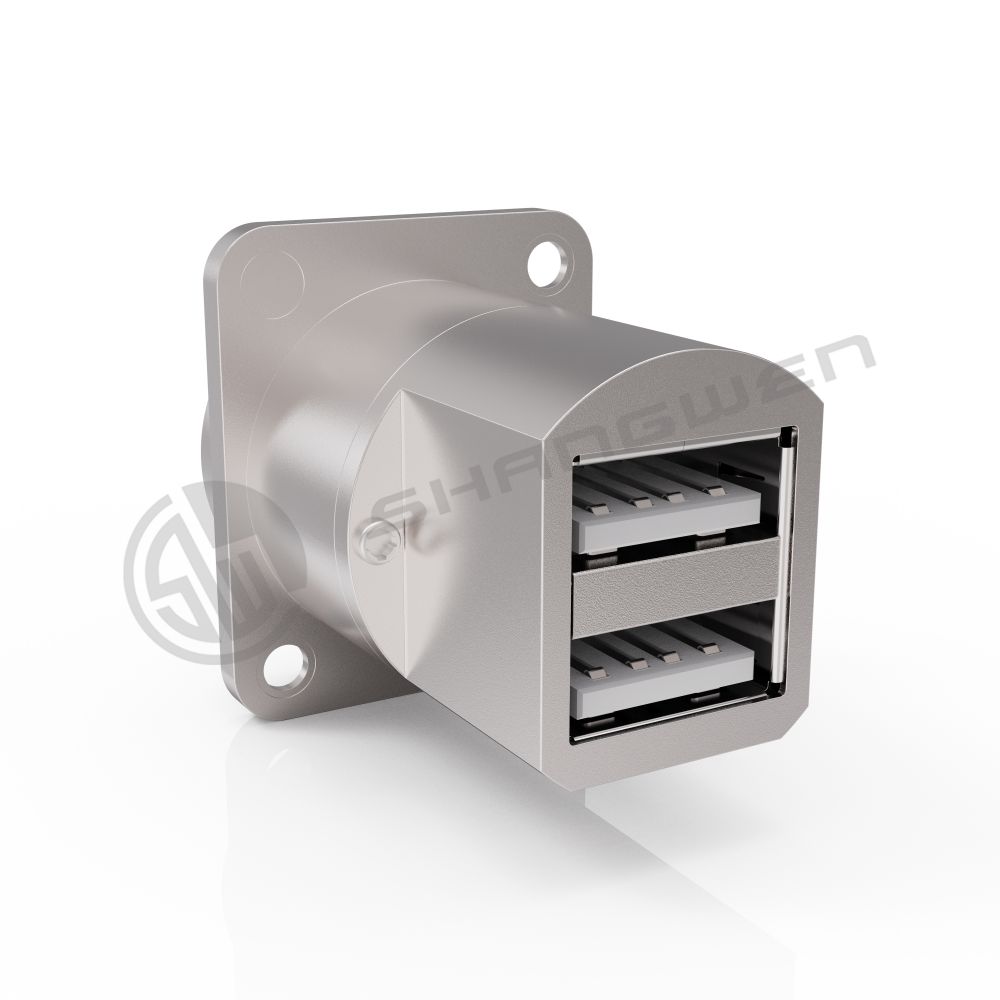

Ip65 Waterproof USB Connector Panel Mount Double Port 4 Pin Data Cable Connector

Place of Origin : Guangdong, China

Brand Name : SHANGWEN

Model Number : SWDU2-SBD

Packaging Details : 10pcs/sample bag
25pcs/Blister box(23cm x 23cm)
500pcs/carton (51cm x 26cm x 34cm)

MOQ : 2 pieces

Price : $2.20/pieces 2-99 pieces

Name : Ip65 Waterproof USB Connector Panel Mount

Type : usb

Industrial electronics : accessories

Waterproof : Ip65

Shell material : Steel

Application : data

Contact Now

 High Quality Indoor Double Port 4 Pin Ip65 Waterproof Usb Data Cable Connector



Indoor/outdoor use data connector




1. Electrical parameters



No. of poles 4
Current rating 1A
Voltage rating 30Vac (RMS)
Contact resistance 30m Ω max.
Performance USB version 2.0



2. Materials - Re-wireable and Panel Connectors



Shell material Steel
Shell plating Nickel
Contact material Copper Alloy
Contact plating 30 micro inch Gold
Connector body & locking ring Glass Loaded Polyester
Panel connector Nylon 6
Flammability rating UL94V-0
‘O’rings Silicone
Panel Gasket - round Silicone
Panel Gasket - square Neoprene
Mating cycles 1,000
RoHS Compliant



Feature
Waterproof,Quick Connect, Quick - Lock


Industrial waterproof connector products are widely used in various scenarios, such as:

Industrial Automation & Sensors, Medical Systems, Network Communications, temperature control & Air Conditioning, LED Lighting,
rail transit, Marine & Marine Engineering, Renewable energy, Test & measurement Equipment and Packaging & logistics transmission.


Model : SWDU2-SBD

☑Double port 4pin shielded,suitable for audio and video connection especially audio system of equipment which is computer-based connection.Standard USB format conversion connector Type A-B (B-A)

Ip65 Waterproof USB Connector Panel Mount Double Port 4 Pin Data Cable Connector
Ip65 Waterproof USB Connector Panel Mount Double Port 4 Pin Data Cable Connector
Ip65 Waterproof USB Connector Panel Mount Double Port 4 Pin Data Cable Connector
Ip65 Waterproof USB Connector Panel Mount Double Port 4 Pin Data Cable Connector


Ip65 Waterproof USB Connector Panel Mount Double Port 4 Pin Data Cable Connector

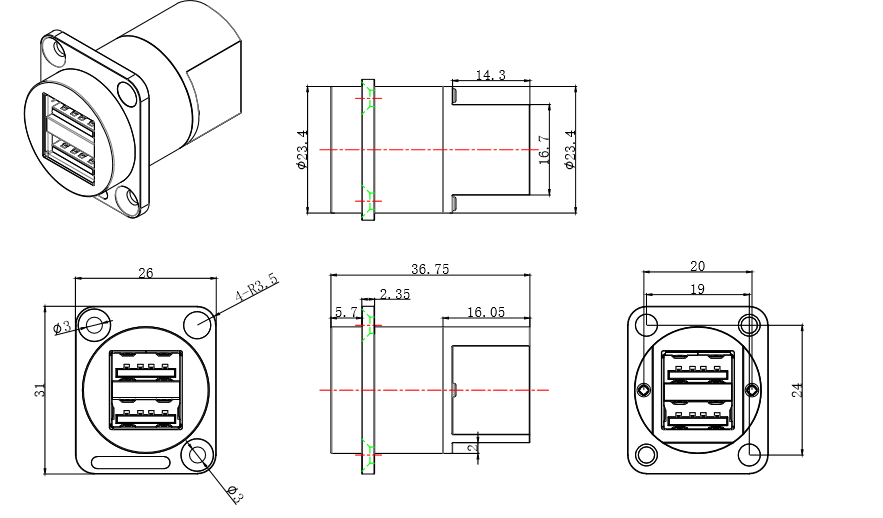

3. Size reference (unit /mm)
Ip65 Waterproof USB Connector Panel Mount Double Port 4 Pin Data Cable Connector

Application area
Ip65 Waterproof USB Connector Panel Mount Double Port 4 Pin Data Cable Connector
