Male Chassis Waterproof Power Connector 250V 20A 3 Conductor

Shenzhen Shangwen Electronic Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

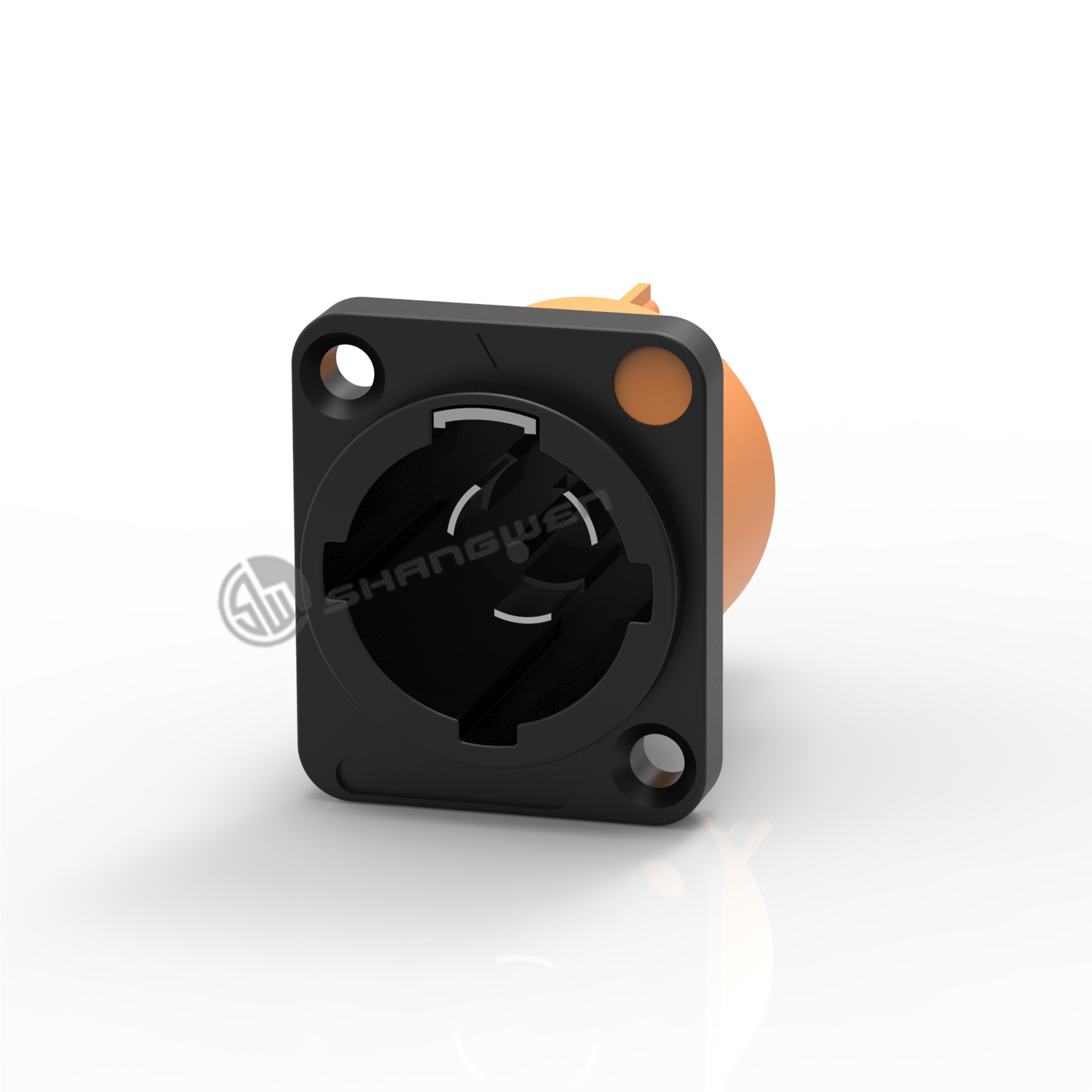

Male Chassis Waterproof Power Connector 250V 20A 3 Conductor

  • 1
  • 2
  • 3

Brand Name : Shang Wen

Model Number : SW3MPX-N

Certification : Rohs UL

Place of Origin : China

MOQ : 10

Price : Negotiable

Payment Terms : T/T

Supply Ability : 100000+pcs+per month

Delivery Time : 5-8 working days

Packaging Details : Internal blister box 23x23cm External carton 51x26x34cm

Name : Waterproof Power Connector 250V

Contacts : 3pin

Application : For power connection

Gender : Male/Power-in

Conductor Material : Cu Alloy

Shell Material : Polyamide

Type Of Terminals : 3/16" flat tab

Connecting Mode : Fast rotating connection

IP Grade : IP65

Contact Now

IP65 Waterproof Powercon Male Chassis 3 Conductor 20A 250V Power-In 3/16" Flat Tab Terminals For Led Screen



SW3MPX is widely used in outdoor LED display power connection.

With the continuous development of the entertainment industry, the demand for products with connected systems is also increasing.
The sealed connector that can be adapted for outdoor use came into being.
To this end, Shangwen has developed a new series of outdoor connectors, which includes power connectors, signal connectors and audio connectors. These rugged, sealed connectors are IP65 rated for outdoor protection.
The shell part is made of PA6 material, with stable electrical performance, good pressure resistance, high temperature resistance, explosion resistance and corrosion resistance.
The contact part is made of beryllium copper material imported from the US and plated with silver, which has strong contact stability and can strengthen the control of temperature rise.



Using rotary locking design, easy to operate, stable and reliable !

Male Chassis Waterproof Power Connector 250V 20A 3 Conductor



Product features

Connect reliably
Small size of product
☑ Three connect methods:male plug to female plug,male plug to female chassis,female plug to male chassis
High current capacity,rated at 20A/250V AC
Color coded for easy identification,powercon offers power-in(blue) and power-out(white) versions with different keying to avoid the possibility of intermating
Waterproof grade IP65
 Secure,quick, simple locking system
 Lockable 3 conductor equipment(AC) connector with contacts for line,neutral and pre-mating ground



Technical parameters

- Electrical parameters

Contacts No.               3
Rated current20A
Rated voltage250V AC
Contact resistance≤5mΩ
Dielectric strength

4000V DC

Insulation resistance

>1000MΩ

- Mechanical parameters

Service life>1000 times
Power line2.5mm²(8mm-12mm)
Wire stripping length7-8mm
Type of terminals3/16'' flat tab/solder termination

-Material and environmental parameters

Shell PA
ConductorCu alloy
Conductor surfaceAg
Flame-retardant gradeUL94-V0
Temperature range-30°C~+80°C
IP gradeIP65

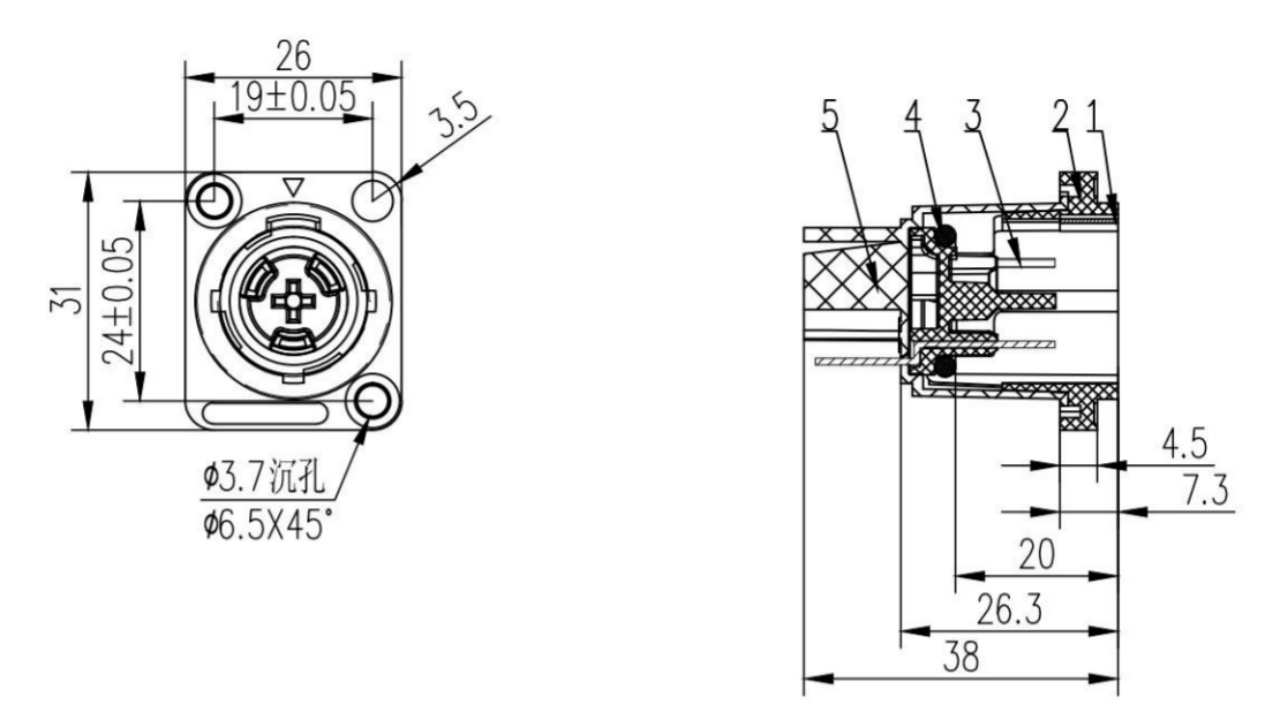

Product Profile

Male Chassis Waterproof Power Connector 250V 20A 3 Conductor
Male Chassis Waterproof Power Connector 250V 20A 3 Conductor
Male Chassis Waterproof Power Connector 250V 20A 3 Conductor
Male Chassis Waterproof Power Connector 250V 20A 3 Conductor
Male Chassis Waterproof Power Connector 250V 20A 3 Conductor
 Male Chassis Waterproof Power Connector 250V 20A 3 Conductor
Packing
Male Chassis Waterproof Power Connector 250V 20A 3 Conductor
